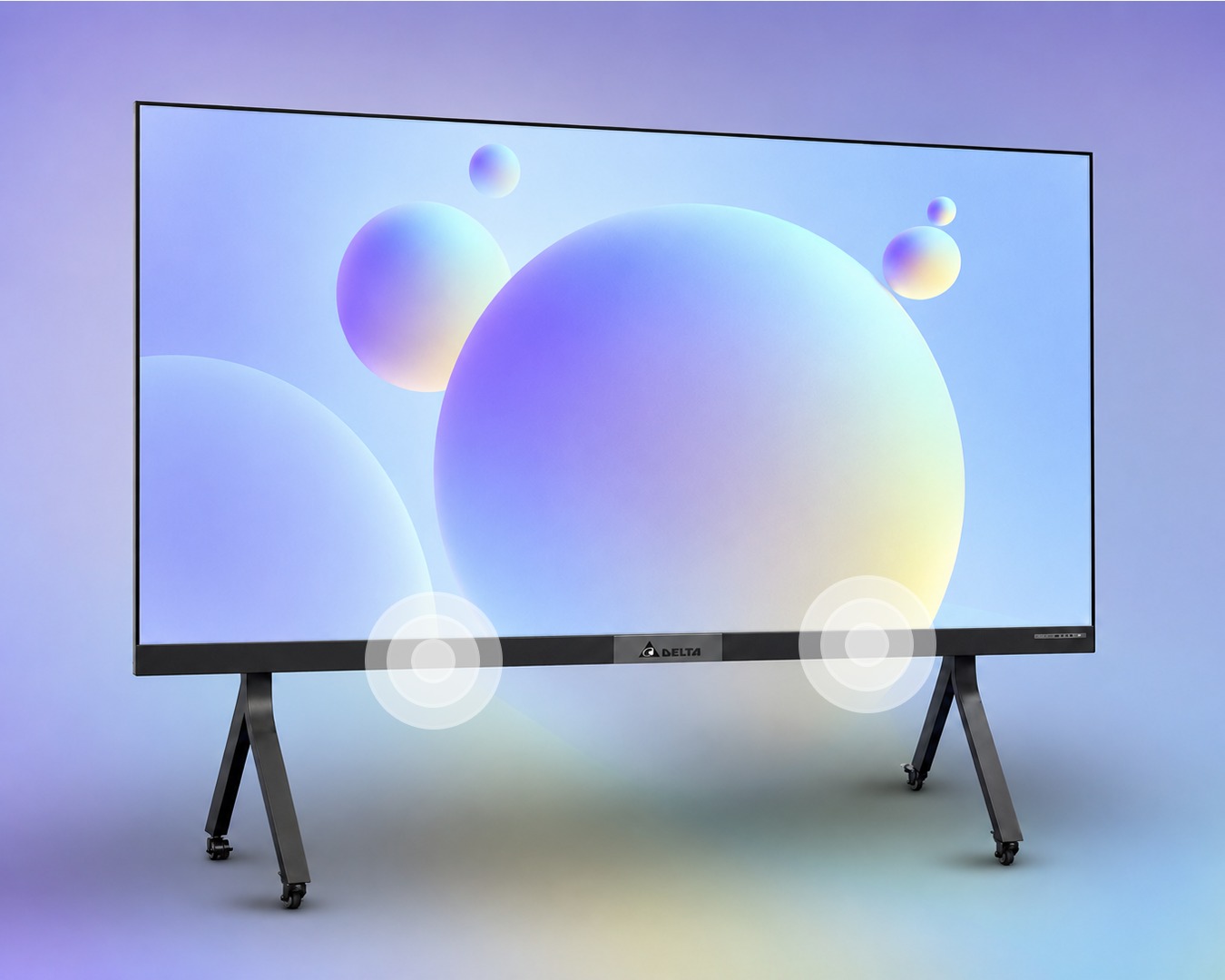

Delta’s C-Pro Series LED All-in-One (AIO) leverages advanced COB (Chip On Board) technology, offering 108 inch full-HD displays. The model includes an embedded controller and high-quality built-in audio, delivering a complete, integrated solution.
Combining all features in one unit, this design streamlines use and maintenance. Its mobility enables flexible, effortless setup and relocation for diverse professional spaces
Features
High-level System Reliability and User-friendly Operation
All-in-one LED series uses COB Full Flip Chip LED technology thereby resulting in a stable product. It has a high contrast with a smooth surface finish & affords easy cleaning with cloth dipped in water.
The Wireless Connectivity results in user friendly operation with an inbuilt provision of upto 4 simultaneous source display.
Full High Definition
Full-HD displays deliver sharp 1080p visuals, vivid colors, high brightness, and wide viewing angles. The seamless design, easy installation, user-friendly controls, energy efficiency, and versatile connectivity make them ideal for professional presentations, meetings, and dynamic visual environments
Integrated All-In-One Audio-visual Design
Built-in high quality 2 x12W audio system tuned by professionals and fully upgraded audio effect provides immersive all-round performance

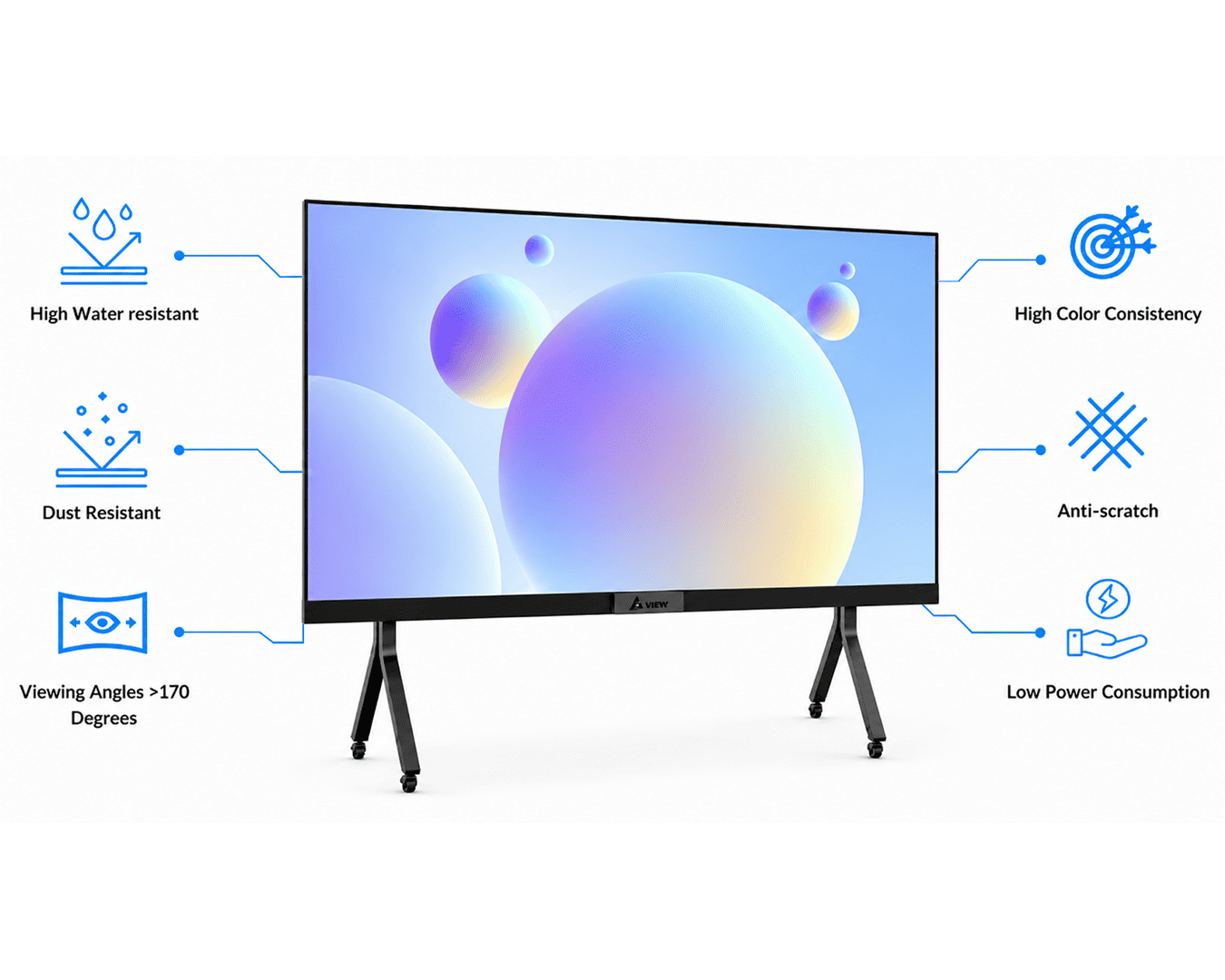

Highly Aesthetically Pleasing Design
- Slim form factor with ultra thin Bezel with a soft touch & feel
- Anti collision, anti dust, anti scratch, anti static Flexible mounting options – wall mount, pedestal or ceiling mount
Specifications
| Parameter | AIO-C-108 |
| Basic Parameters | |
| Diagonal Size (inch) | 108 |
| Aspect Ratio | 16:9 |
| Resolution | 1920×1080 |
| Dimensions (mm) | 2411*1476*30.4 |
| Weight (kg) | 85 |
| Material | Die-Cast Aluminum |
| Border Material/Colour | Aluminum Profile/ Black |
| Maintenance | Front |
| Installation Options | Wall-mounting, Mobile stand, Ceiling mount |
| Display Parameters | |
| LED Type | COB |
| LED Life Time (Hrs) | ≥100000 |
| Horizontal/Vertical Viewing Angle (degree) | 170° / 170° |
| Brightness (cd/m2) | 800 (adjustable) |
| Refresh Rate (Hz) | 3840 |
| Video Frame Rate (Hz) | 50 Hz |
| Contrast Ratio | 25000:1 |
| Brightness Uniformity | ≥98% |
| Mainboard Parameters | |
| Operating System | Android 13.0 |
| CPU | Octacore: Cortex A73*4+A53*4 |
| RAM/ROM | 8GB DDR4/64GB |
| Input Ports | HDMI in*2 SPDIF*1 USB2.0*1 USB3.0*3 USB-B*1 LAN*1 |
| Output ports | Audio out*1 LAN*1 |
| WiFi | WiFi 5+ WiFi 6 (Dual wifi) |
| Speaker | |
| Audio (Speakers built-in) | 12Wx2 |
| Operation Parameters | |
| Input Voltage | AC 100 V ~ 240 V, 50-60Hz |
| Standby Power Consumption (W) | ≤0.8 |
| Average Power Consumption (W) | 488 |
| Peak Power Consumption (W) | 1260 |
| Storage Temperature/Humidity | -10°~+45 °/10~80% RH |
| Storage Temperature/Humidity | -20°~+50°/10~70% RH |
| IR Remote | 1 unit |
