Delta’s All-in-One LED series consists of 120- inch, 138-inch, 150-inch and 165-inch large screens which are offered as an all-in-one package including an embedded controller & built-in high quality audio system.

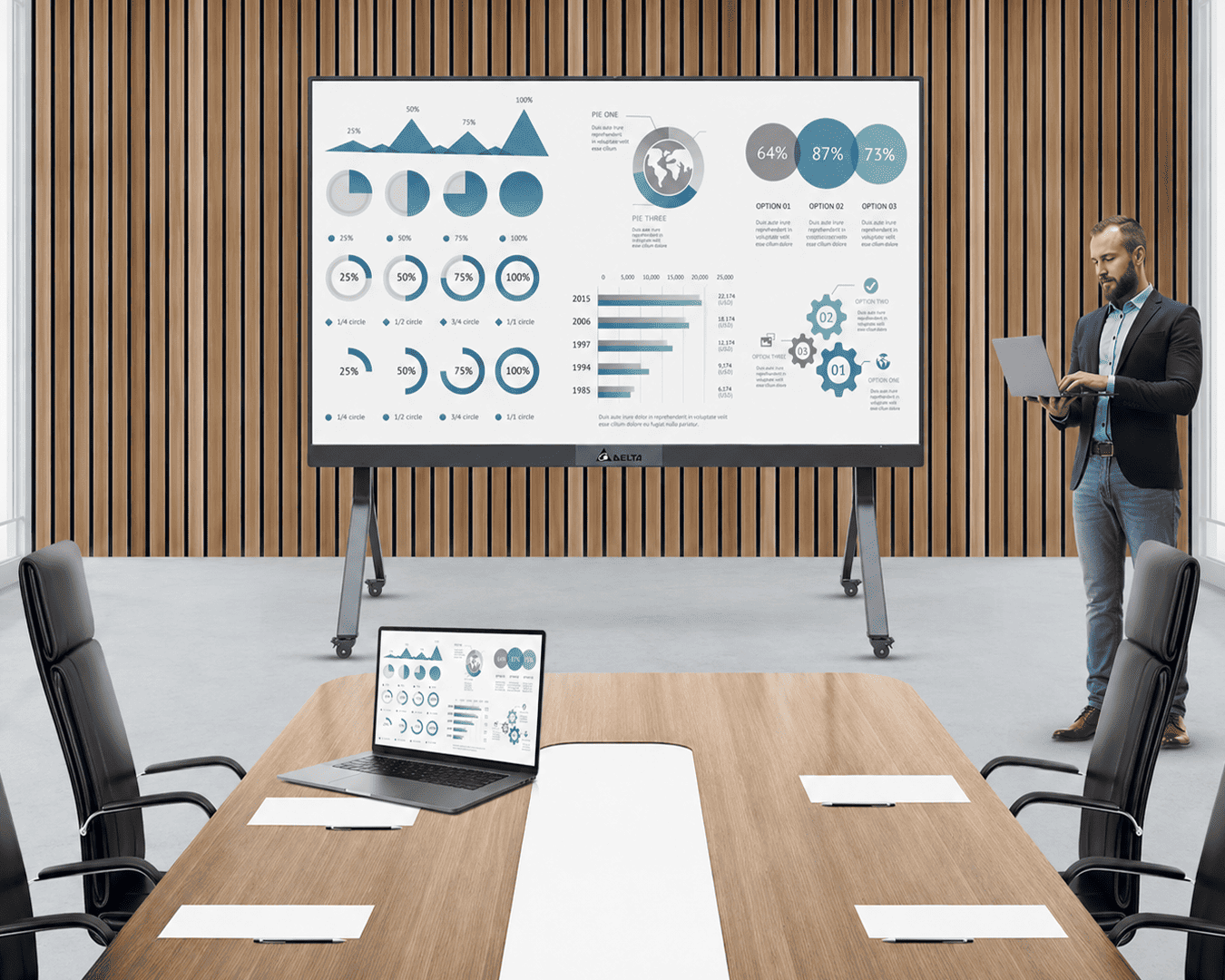

This integrated system simplifies daily operations and maintenance by consolidating all its features into one unique device. These models are suitable for meeting room & multi purpose applications as they can be moved around without any hassle.
Features
High-level System Reliability and User-friendly Operation
All-in-one LED series has pixel configuration of SMD 3 in 1 LED thereby resulting in a stable product. It has a high brightness uniformity & high colour processing depth to offer a visually appealing product.
The Wireless Connectivity results in user friendly operation with an inbuilt provision of upto 4 simultaneous source display.

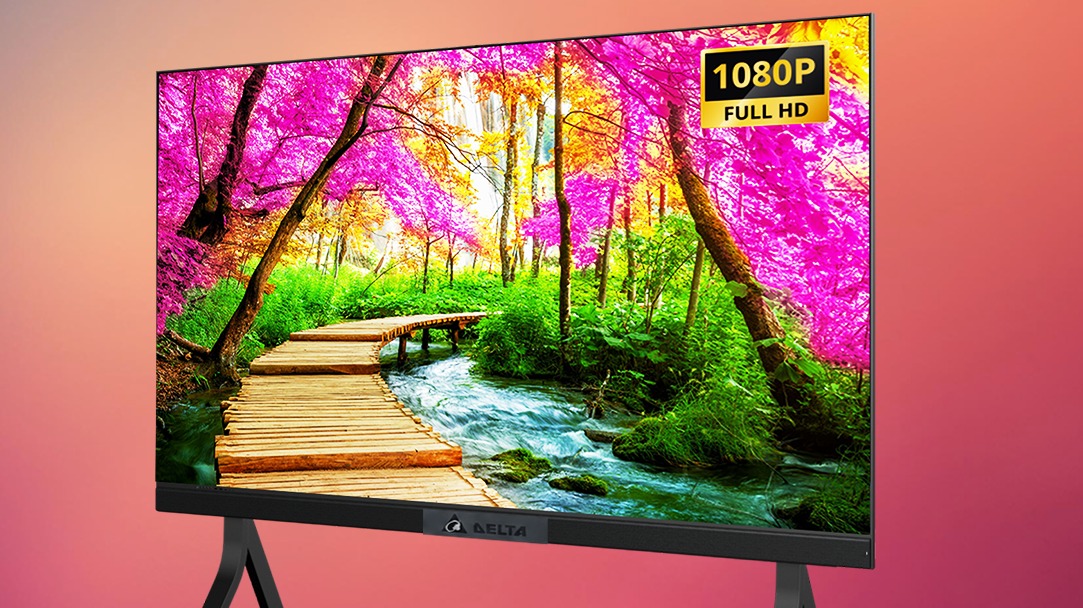

Full High Definition
Full-HD resolution ensures perfect viewing experience without loss of detail. Built-in video processing function supports screen splitting mode and easy switching.
- Various Scene Modes
- High gray scale level under low brightness

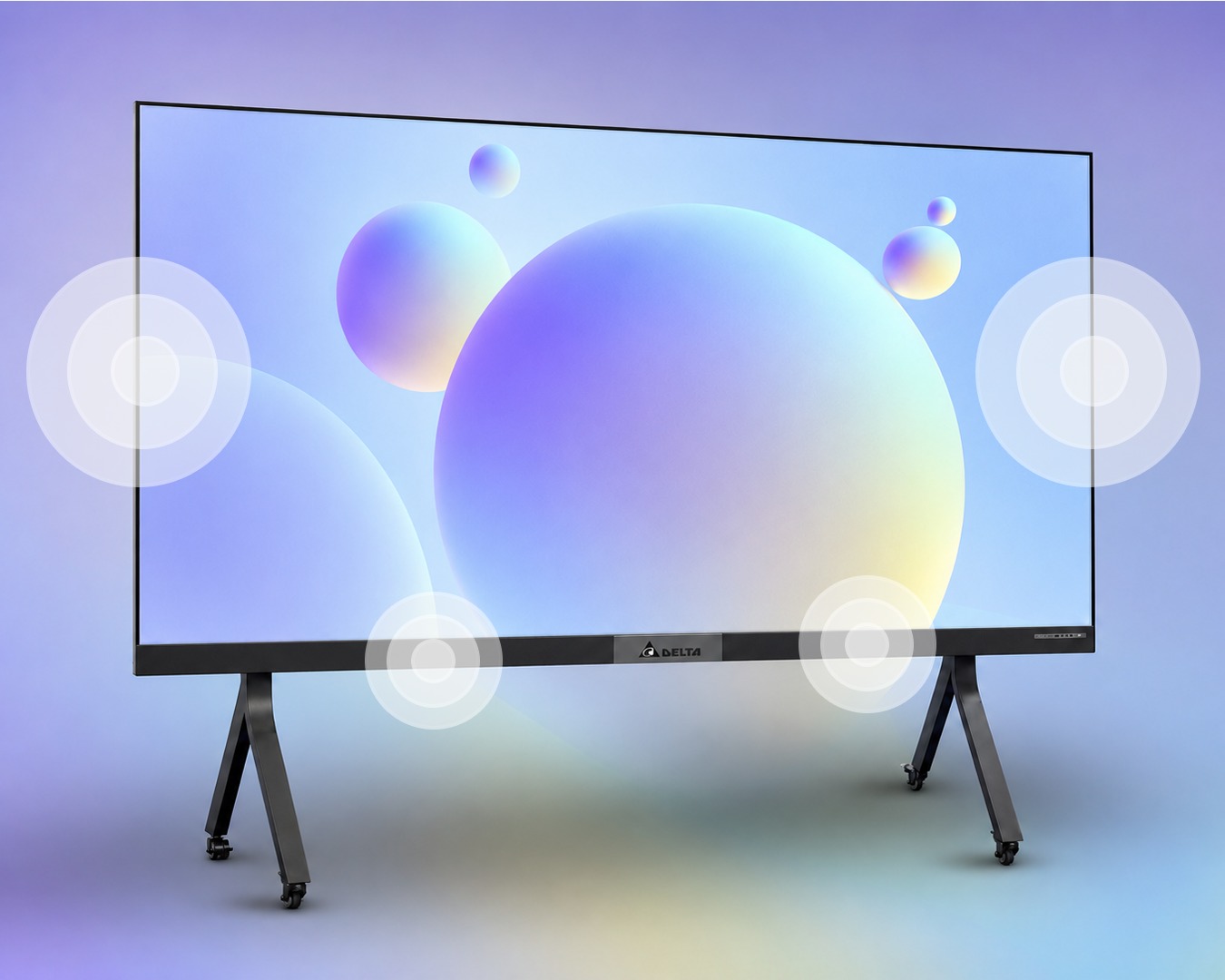

Integrated All-In-One Audio-visual Design
Built-in high quality audio system tuned by professionals and fully upgraded audio effect provides immersive all-round
- Professional Sound System
- 90DB Sensitivity
- 2*30W Speakers
- 180Hz – 20KHz Frequency Response
Highly Aesthetically Pleasing Design
- Slim form factor with ultra thin Bezel with a soft touch & feel
- Flexible mounting options – wall mount, pedestal or ceiling mount
Specifications
| Model | AIO-D120 | AIO-D138 | AIO-D150 | AIO-D165 | |
| Diagonal Size | 120″ | 138″ | 150″ | 165″ | |
| Physical Parameters | Screen Size (WxHxD, mm) | 2,678×1,616×28.5 | 3,064×1,832×31 | 3,344×1,990×28.5 | 3,674×2,175×31 |
| Display Size (WxHxD, mm) | 2,664×1,498.4×28.5 | 3,050×1,715×31 | 3,330×1,873×28.5 | 3,660×2,058×31 | |
| Pixel Pitch(mm) | 1.3875 | 1.588 | 1.734 | 1.906 | |
| Resolution | 1,920×1,080 | 1,920×1,080 | 1,920×1,080 | 1,920×1,080 | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Weight (Kg/Screen) without wall mounting bar or stand | 90 | 135 | 135 | 190 | |
| Pixel Density per sqm | 519,438 | 396,425 | 332,440 | 275,290 | |
| Cabinet Material | Magnalium | Magnalium | Magnalium | Magnalium | |
| Cabinet Individual size | 666*374.6*28.5mm | 610*343*31mm | 666*374.6*28.5mm | 610*343*31mm | |
| Screen Protection | Coating On Surface | Coating On Surface | Coating On Surface | Coating On Surface | |
| LED Chip | Delta Selected | Delta Selected | Delta Selected | Delta Selected | |
| Optical Parameter | Brightness(Typical) | 800 Nits | 800 Nits | 800 Nits | 800 Nits |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
| Contrast | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | |
| Audio | 2x30W Stereo | 2x30W Stereo | 2x30W Stereo | 2x30W Stereo | |
| Viewing Angle (H/V) | 160/160 | 160/160 | 160/160 | 160/160 | |
| Electrical Parameter | Input Voltage (V) | 100~240VAC | 100~240VAC | 100~240VAC | 100~240VAC |
| Picture in Picture | Supports HDMI 2.0 Signal Picture in Picture | Supports HDMI 2.0 Signal Picture in Picture | Supports HDMI 2.0 Signal Picture in Picture | Supports HDMI 2.0 Signal Picture in Picture | |
| Installation Mode | Wall Mounting / Hanging / Mobile Stand | Wall Mounting / Hanging / Mobile Stand | Wall Mounting / Hanging / Mobile Stand | Wall Mounting / Hanging / Mobile Stand | |
| USB | USB 3.0 x 1 , USB 2.0 x 1 | USB 3.0 x 1 , USB 2.0 x 1 | USB 3.0 x 1 , USB 2.0 x 1 | USB 3.0 x 1 , USB 2.0 x 1 | |
| Audio Output – 3.5 mm | Yes | Yes | Yes | Yes | |
| Inputs 3 x HDMI 2.0 ( 2 internal and 1 external) | Yes | Yes | Yes | Yes | |
| Outputs 1 x HDMI 2.0 ( Internal) | Yes | Yes | Yes | Yes | |
| Remote Control | Yes | Yes | Yes | Yes | |
| Controller | Embedded | Embedded | Embedded | Embedded | |
| Signal Processing | Upto 4 simultaneous source display | Upto 4 simultaneous source display | Upto 4 simultaneous source display | Upto 4 simultaneous source display | |
| Controller | Android | Android | Android | Android | |
| Storage | 32 GB | 32 GB | 32 GB | 32 GB | |
| RS232 x 1 ( Internal) | Yes | Yes | Yes | Yes | |
| RS 485 x 1 ( Internal) | Yes | Yes | Yes | Yes | |
| LAN x 1 ( Internal) | Yes | Yes | Yes | Yes | |
| IR Remote | Yes | Yes | Yes | Yes | |
| Maintenance Access | Front Access | Front Access | Front Access | Front Access | |
| Operating Temperature -(℃) | -10~+40 | -10~+40 | -10~+40 | -10~+40 |
