The ED Ultra Series 5K Interactive Flat Panel Display is designed to deliver a seamless collaboration experience for both education and business environments. Available in a massive 92” & 105″ diagonal display size, it transforms classrooms and meeting spaces into smarter, more interactive workspaces.
With advanced wireless collaboration, participants can instantly share their device screens on the ED display, making presentations, discussions, and teamwork effortless. The integrated digital whiteboard offers ultra-smooth touch annotation for a truly engaging and interactive session.
Features
Ultra-Wide 5K Interactive Display
Engineered with a 5120×2160 native resolution and 21:9 ultra-wide aspect ratio, the
ED922i & ED1052i delivers expansive screen space ideal for multitasking, immersive
video conferencing, and advanced visual collaboration. It uses high-contrast panel
technology, thereby ensuring accurate color reproduction and wide viewing angles—
making it a great choice for digital transformation across corporate, education, and
control room applications looking to upgrade their digital set-up.

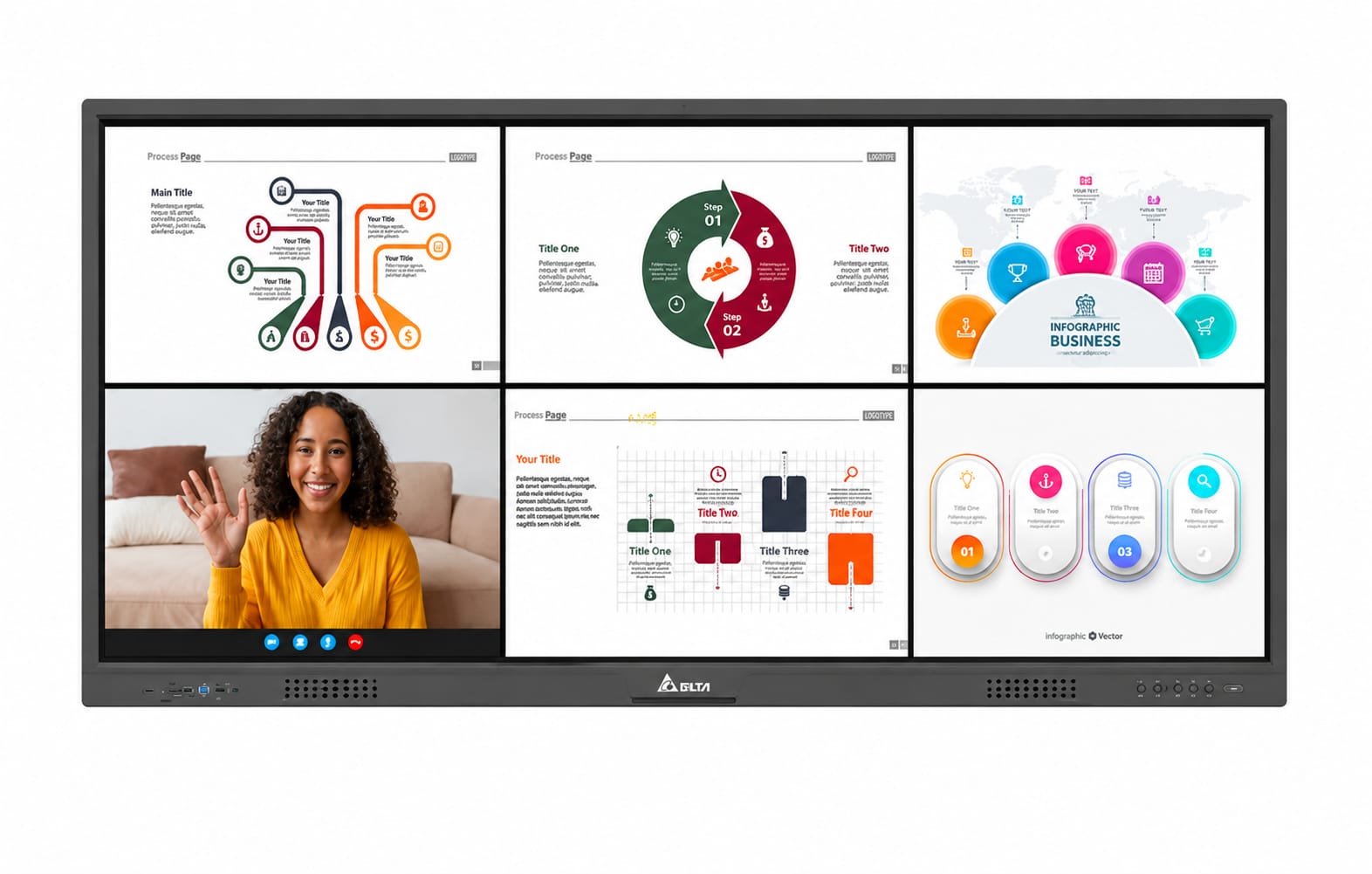

Delta DConnect+ Wireless Collaboration Solution
With Delta DConnect+ you can share your screen and interact in real-time on different devices – all without using any cables, dongles, or adapters. Fully compatible with Windows, macOS, Android, and iOS, it allows users to instantly cast presentations, documents, videos, and live content directly to the interactive display. It delivers a fluid, clutter-free experience ideal for modern meeting rooms and classrooms.

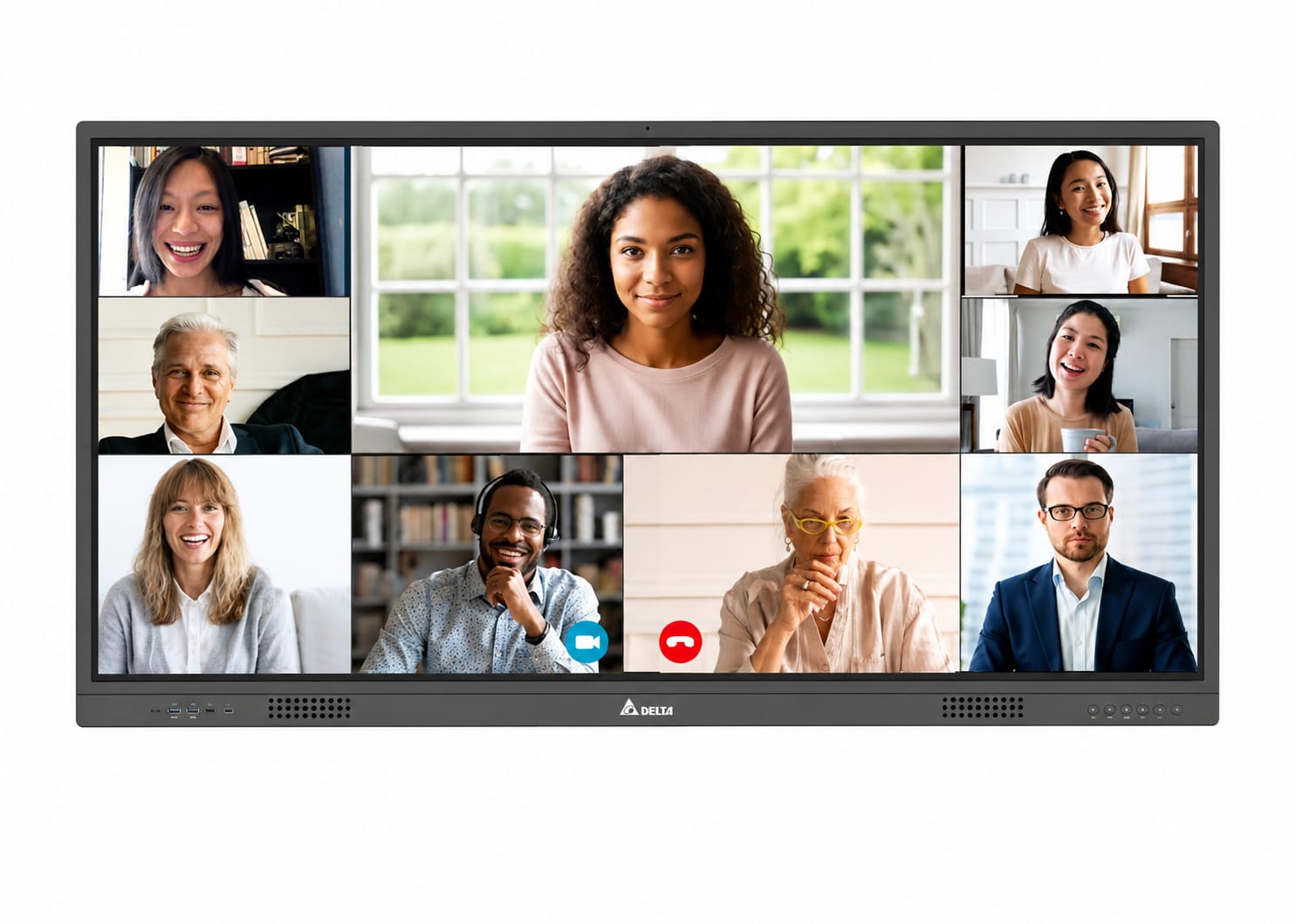

Purpose-Built for Next-Generation Hybrid Workspaces
The Delta ED Ultra Series is designed to deliver an exceptional video conferencing experience. With its ultrawide 92” & 105” 5K display and 21:9 aspect ratio, it bridges the gap between in-room and remote participants, making hybrid meetings more engaging, inclusive, and productive. It fully supports the Microsoft Teams “Front Row” layout and advanced Zoom Room setups, allowing remote and in-room participants to engage more naturally, with better eye contact, clearer shared content, and inclusive interaction.

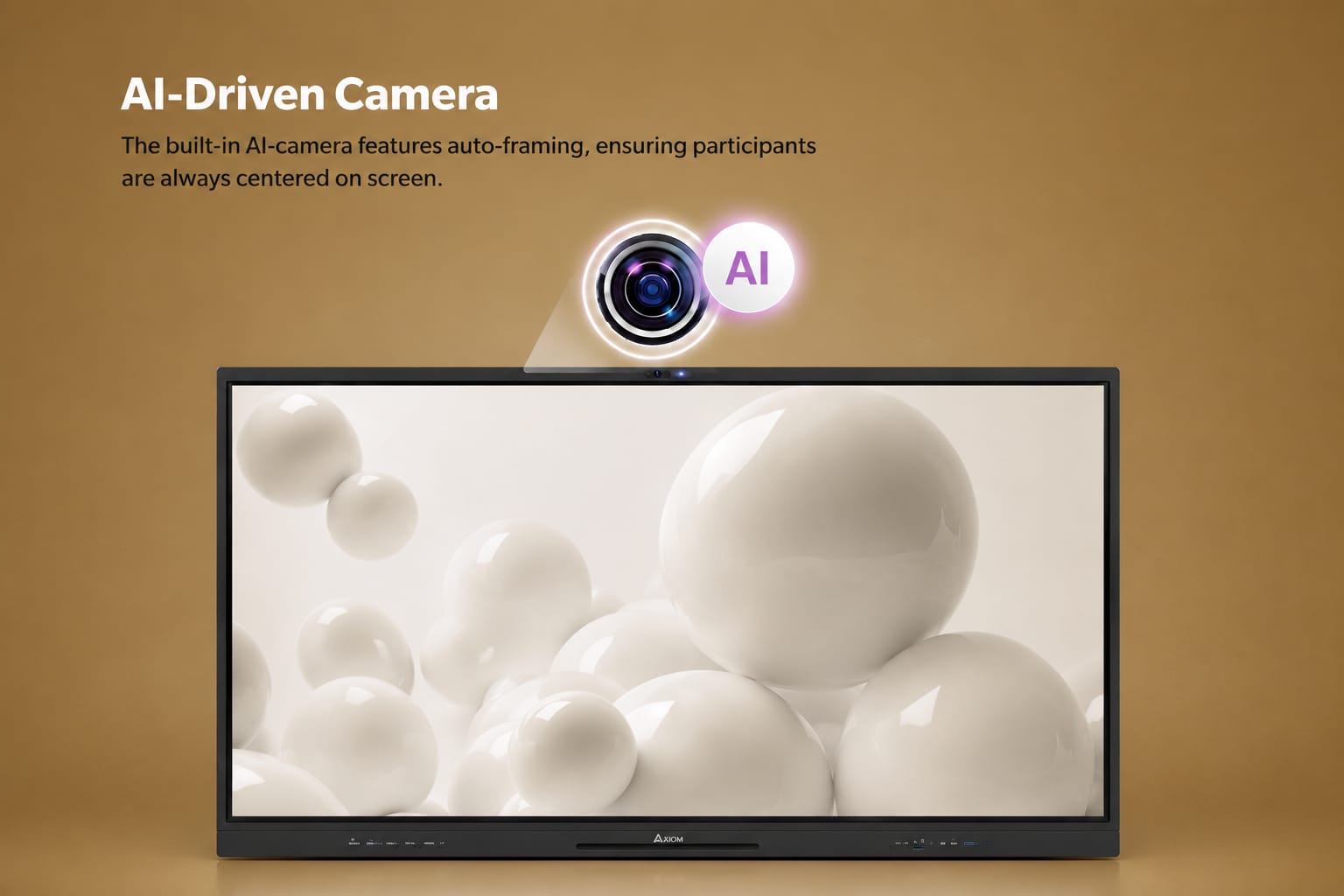

AI-Driven Camera
The built-in Al-camera features auto-framing, ensuring participants
are always centered on screen.

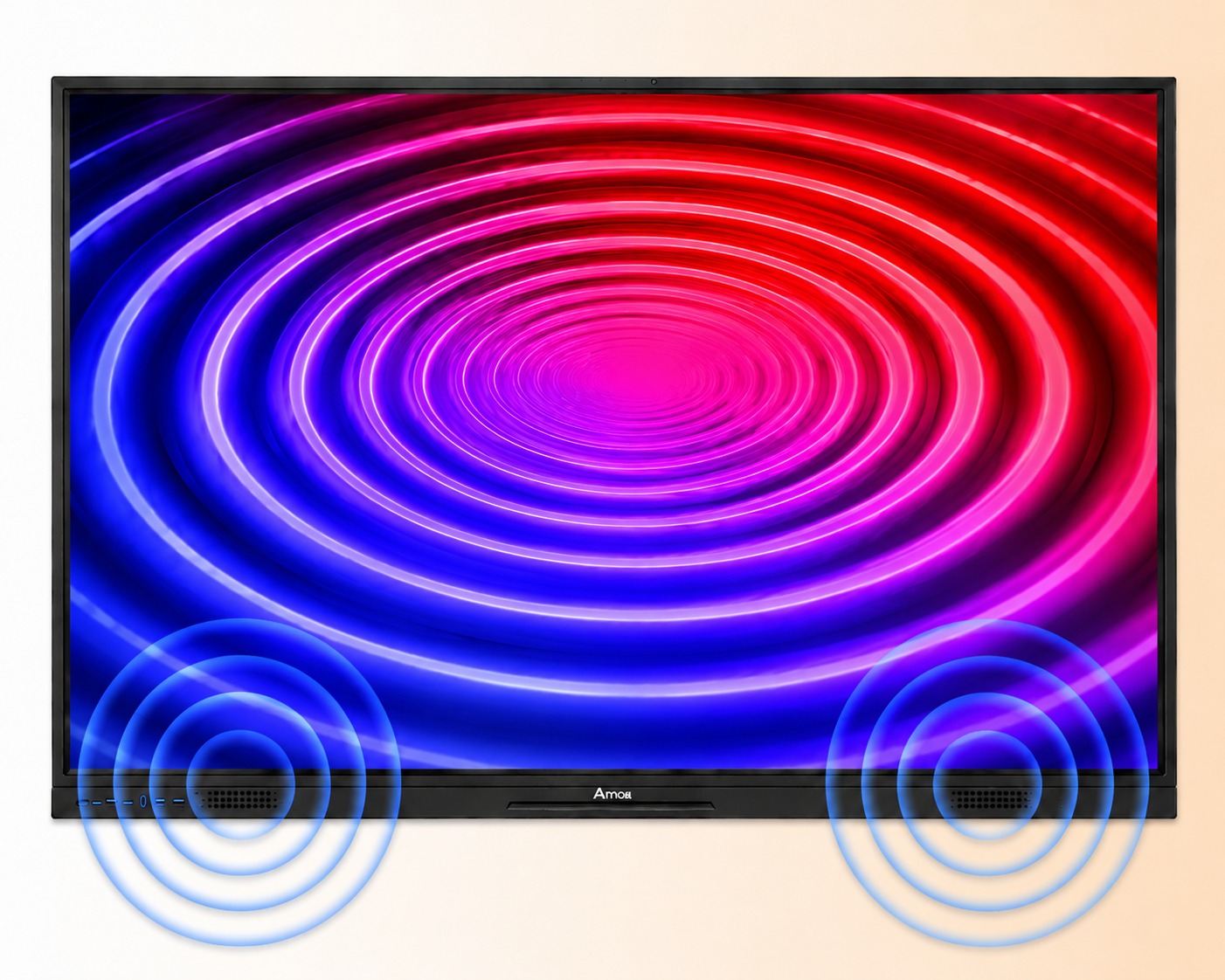

Powerful 40 Watt Built-in Speakers
Enjoy immersive sound with built-in dual 40-Watt speakers, perfectly tuned for voice reproduction and multimedia playback. This powerful audio-visual solution is ideal for
conference rooms and classrooms, providing rich, room filling sound without the need for external speakers.

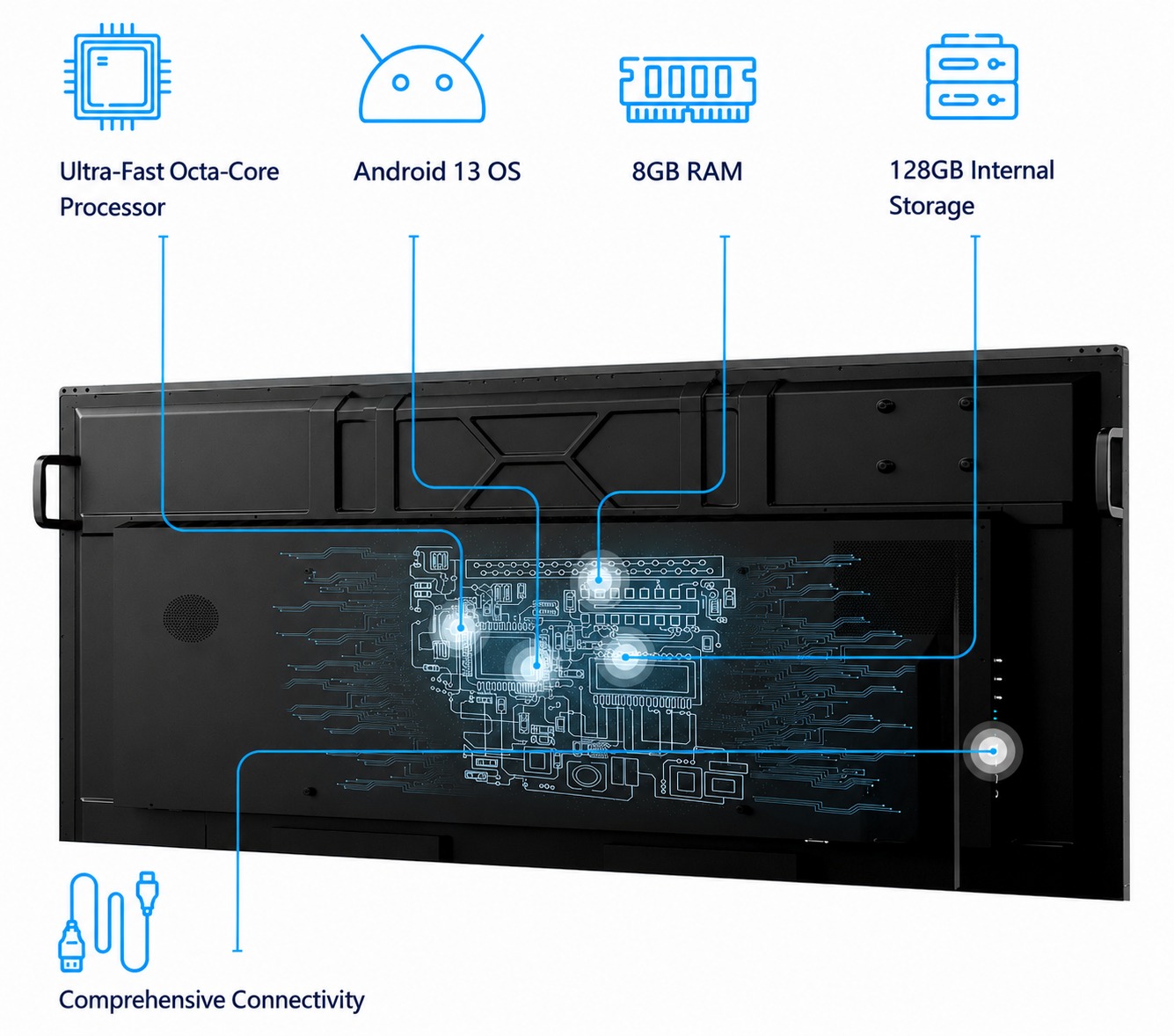

Designed for Performance and Versatility
Built for speed and reliability, the ED Ultra Series delivers exceptional performance for demanding applications.
Specifications
| Model Name | ED922i | ED1052i | |
|---|---|---|---|
| Display | Type/Technology | Backlit D-LED (IPS Panel) | |
| Panel Size | 92″ | 105″ | |
| Brightness | ≥ 450nits Typical | ||
| Contrast Ratio | 5,000:1 | ||
| Viewing Angle (H/V) | 178°/178° | ||
| Aspect Ratio | 21:09 | ||
| Bonding Technology | Zero Bonding | ||
| Refresh Rate (Hz) | 60Hz | ||
| Display Color (Bit) | 1.07 Billion (10-bit) | ||
| Installation Orientation | Landscape | ||
| Working Life | 50,000 Hours (Typical) | ||
| Interactivity | Technology | Infrared Touch | |
| Touch Points | ≥40 Points | ||
| Accuracy | ±1mm (Over 90% Area) | ||
| Touch Response | <5ms (Typ.) | ||
| Touch Resolution | 32,768 x 32,768 | ||
| Surface Protection | Anti-Glare Thick Toughened Glass (9H) | ||
| Touch Tools | Finger, Stylus, Glove, Opaque Objects | ||
| Operating System | System Version | Android™ v13.0 | |
| CPU | Octa-Core ARM Cortex | ||
| GPU | Mali™ G52 | ||
| RAM | 8GB | ||
| Internal Storage | 128GB | ||
| Connectivity | Input – Display | HDMI x3, DP x1, VGA x1 | |
| Input – Audio | VGA Audio(x1), Mic In(x1) | ||
| Output – Display | HDMI-Out x1 | ||
| Output – Audio | Line-Out (x1), SPDIF-Out (x1) | ||
| Internet | LAN (RJ45) (x2) | ||
| Control | RS232-In (x1) | ||
| Wi-Fi | Wi-Fi 6 IEEE802.11ax (2.4GHz/5GHz) | ||
| Bluetooth | BT 5.2 | ||
| I/R Receiver | Front (x1) | ||
| USB-A Front | USB 3.0 (x1) | ||
| USB-A Side | USB 3.0 (x1), USB 2.0 (x1) | ||
| USB-B Front | USB Type-B (Touch) | ||
| USB-B Side | USB Type-B (Touch) | ||
| USB-C | USB-C (x1) | ||
| Card Slot | Micro SD | ||
| Expansion | Windows Module | Standard Intel 80pin OPS (Optional) | |
| Audio & Camera | Speakers | 20W (x2) Stereo | |
| Microphone | 8-Microphone Array (8M Pickup) | ||
| Camera | 48MP | ||
| Environment | Working Temperature | 0°C – 40°C | |
| Working Humidity | 10% – 80% | ||
| Power | Power Supply | AC 100 – 240V, 50/60Hz | |
| Consumption | ≤450W (Typ.) | ||
| Standby Mode | ≤0.5W | ||
| Physical Characteristics | VESA Mounting | 800 x 400mm | |
| Dimensions (L × H × D) | 2218.6 × 1034.9 × 105.8 mm | 2518 × 1165.3 × 105.3 mm | |
| Accessories | Standard | AC Power Cord, Stylus (x2), Remote Control, Wall Mount Kit, HDMI Cable, Touch Cable, Documentation Kit, Antenna | |
©2026 Delta Electronics India Pvt. Ltd. Values, weights and dimensions shown are approximate.
Errors and omissions excepted. Specifications are subject to change without prior notice.
Images are representative only and the actual product may look different. Specifications and availability are subject to change
without notice. Corporate names and trademarks stated herein are the property of their respective companies. All rights reserved.
