The TK4 Series is built to bring clarity, responsiveness, and ease into every interaction. Available in 65″, 75″, 86″ diagonal size display. Whether in a classroom or a meeting space, it enables teams to collaborate naturally without technical barriers with the help of a combination of powerful hardware and intuitive software.
Features

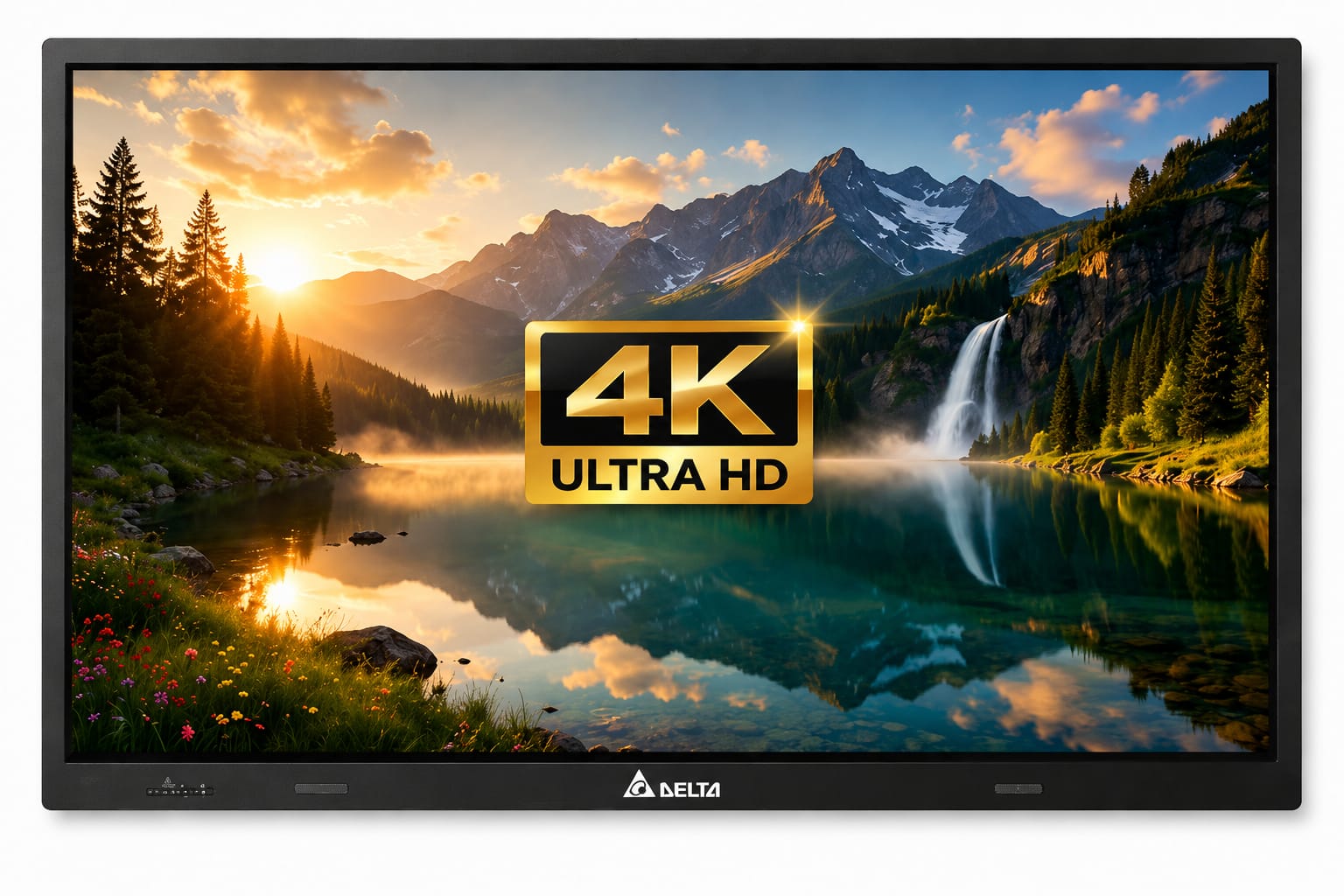

Brilliant Visual Performance
The TK4 series has 65″, 75″ & 86″ diagonal size Ultra HD 4K flat panel display delivers sharp detail, accurate colors, and consistent brightness, thus ensuring presentations, videos, and annotations remain clear from every angle.
Built for Everyday Durability
Designed to perform in high-usage environments, the display features anti-glare, thick toughened glass that minimizes reflections while protecting the panel from scratches and impact. The result is a reliable viewing experience, even in brightly lit rooms.

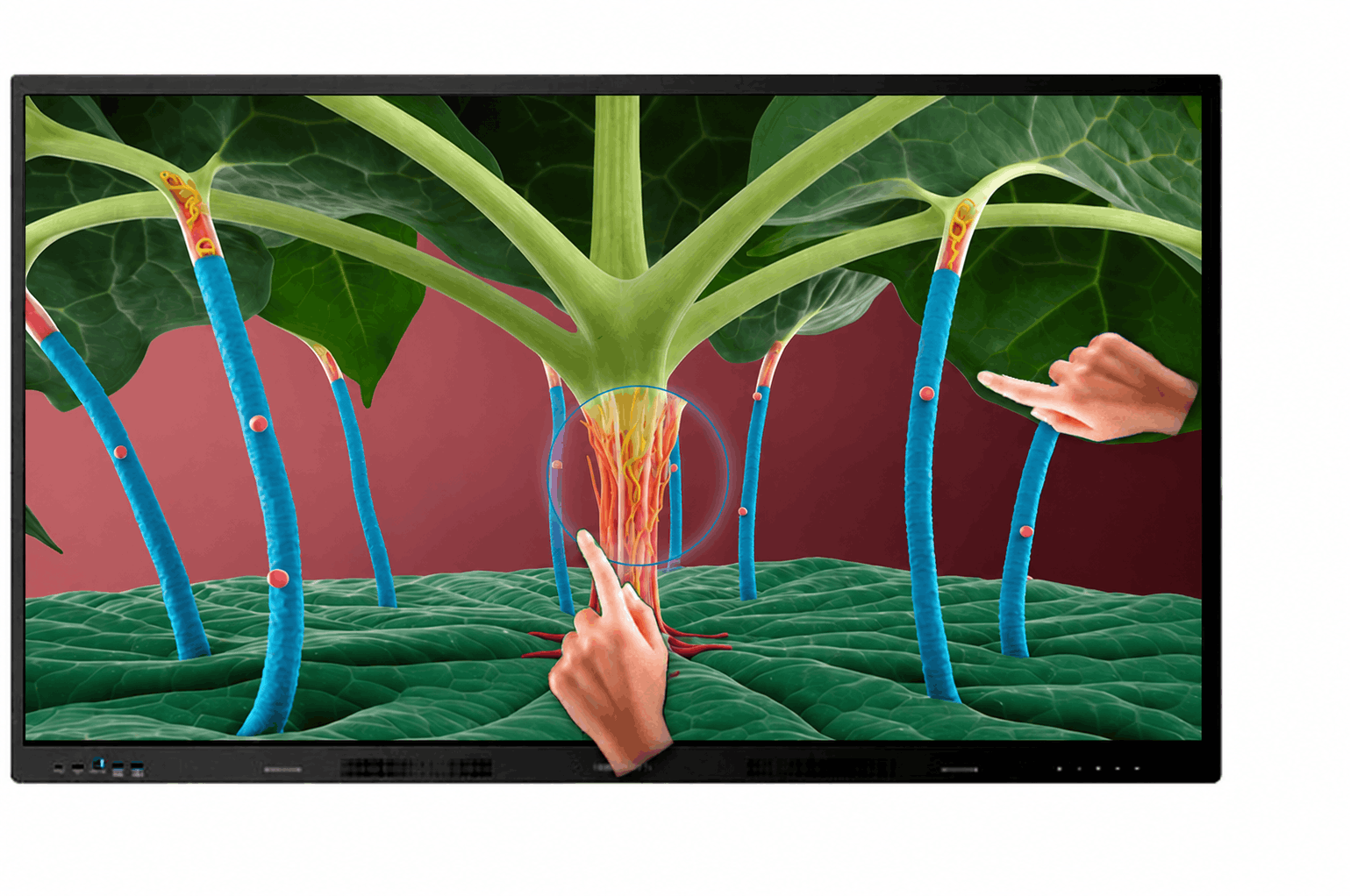

True Multi-User Interaction
With 20-point multi-touch capability, the TK4 Series allows multiple users to write, annotate, and interact simultaneously. This makes it ideal for collaborative discussions, group learning and interactive presentations.
Powerful Performance
Equipped with an octa-core processor, 4GB RAM, and 32GB storage, the display ensures smooth navigation, faster app performance, and effortless multitasking—supporting demanding, real-time use without lag.
Effortless Wireless Screen Sharing
The native screen-sharing solution allows users to connect instantly from Windows, macOS, iOS, and Android devices without additional hardware. This ensures quick setup and seamless participation across teams.

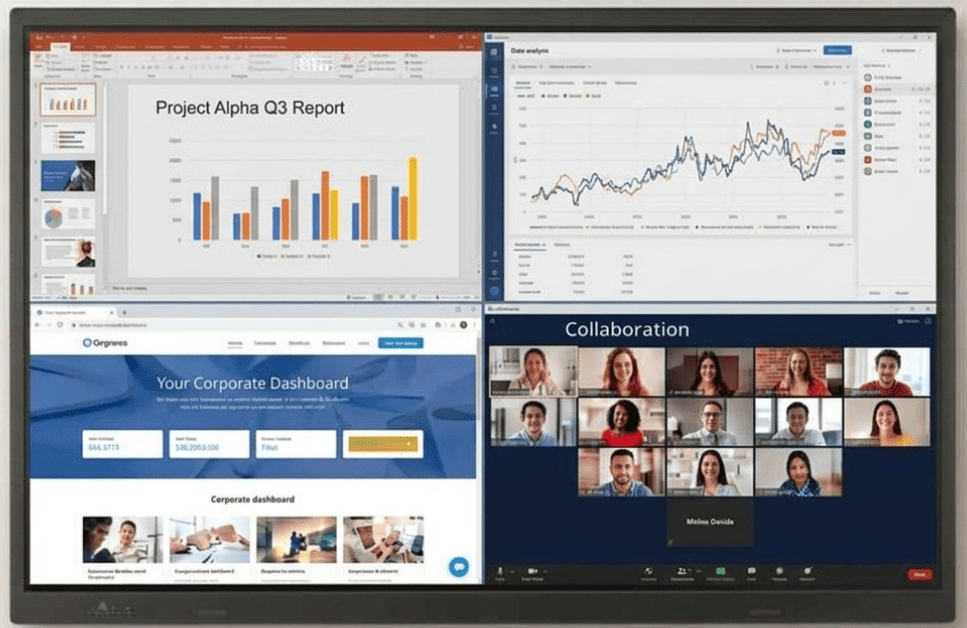

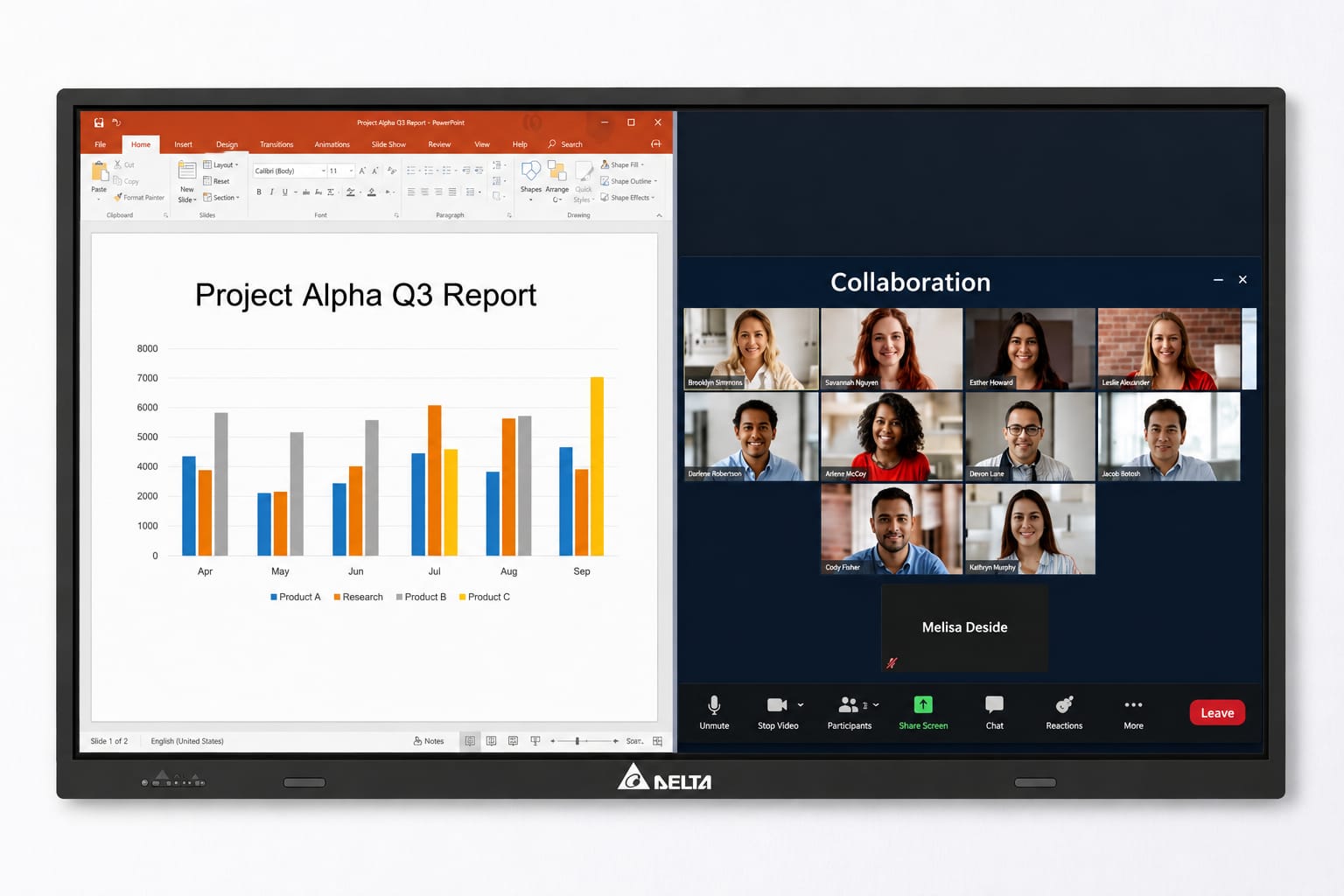

Work Smarter with Split Screen
The dual-app multitasking (split-screen) feature allows two applications to run side-by-side. Present, reference, and annotate simultaneously thereby improving efficiency and enabling more dynamic workflows.
Specifications
| Model Name | TK654i | TK754i | TK864i | |
|---|---|---|---|---|
| Display | Panel Size | 65” | 75″ | 86″ |
| Type/Technology | VA with D-LED | |||
| Brightness (Typ.) | 400cd/m2 | |||
| Contrast Ratio | 5000:1 | |||
| Native Resolution | 4K Ultra-HD (3840 x 2160) | |||
| Viewing Angle (H/V) | 178°/178° | |||
| Aspect Ratio | 16:9 | |||
| Response Time (Typ.) | 6.5ms | |||
| Refresh Rate (Hz) | 60Hz | |||
| Display Color (Bit) | 1.07 billion (10-bit) | |||
| Installation Orientation | Landscape | |||
| Working Life | 50,000 Hours (min) | |||
| Interactivity | Technology | Infrared Touch | ||
| Touch Points | 20 Points | |||
| Touch Accuracy | ± 1.5mm | |||
| Touch Resolution | 32,768 x 32,768 | |||
| Surface Protection | Anti-Glare Thick Toughened Glass with 3mm level 7MoHS | |||
| Pen | Passive Pen (x2) | |||
| Touch Tools | Finger, Stylus, Glove, Opaque Objects | |||
| Operating System | System Version | Android™ v14.0 | ||
| CPU | Octa-Core | |||
| GPU | Integrated | |||
| RAM | 4GB DDR4 | |||
| Internal Storage | 32GB eMMC | |||
| Connectivity | Input Ports | HDMI v2.0 (x2), Audio (x1) | ||
| Output Ports | HDMI (x1), Audio (x1) | |||
| LAN | RJ45 (x1) | |||
| Control | RS232-In (x1) | |||
| Wi-Fi | Wi-Fi5 (IEEE802.11ac) | |||
| Bluetooth | BT 5.1 | |||
| I/R Receiver | Front (x1) | |||
| USB Ports | USB 3.0 (x2), USB 2.0 (x2), USB-C (x1), Touch USB (x2) | |||
| Expansion | Windows Module | Standard OPS Slot | ||
| Audio | Speakers | 20W (x2) | ||
| Power | Power Supply (Internal) | AC 100 – 240V, 50/60Hz (4.5A) | ||
| Consumption | ≤350W | ≤375W | ≤400W | |
| Standby Mode | ≤0.5W (Standby) | |||
| Physical Characteristics | VESA Mounting | 600 x 400mm | 800 x 400mm | |
| Environment | Operating Temperature | 0°C- 40°C | ||
| Storage Temperature | -20°C -60°C | |||
| Operating Humidity | 20%-80%, RH Non-Condensing | |||
| Accessories | Standard | AC Power Cord, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit with Fasteners, HDMI Cable, Touch Cable, User Manual | ||
